Vertical air-cooled diesel engine

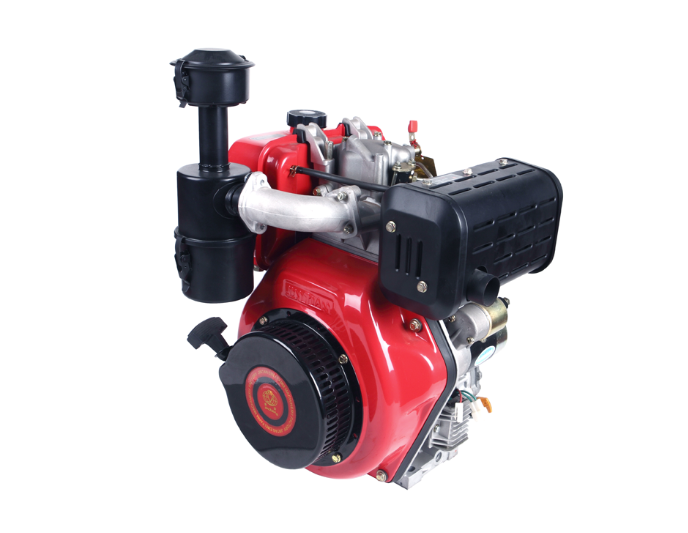

  • Vertical air-cooled diesel engine JT192F(E)16HP
  • Vertical air-cooled diesel engine JT192F(E)16HP
  •   Contact Us
    • Vertical air-cooled diesel engine JT192F(E)16HP
Quick Detail:

TYPE

SINGLE CYLINDER,HORIZONTAL,4-STROKE,AIR COOLED DIESEL ENGINE

BORE*STROKE(MM)

92*75

DISPLACEMENT(CC)

498

COMPRESSION RATIO

2001

ENGINE SPEED(RPM)

3000/3600

RATED OUTPUT(KW)

8.1/8.7

FUEL TANK CAPACITY(L)

3.5

LUBE CAPACITY(L)

1.65

CRANKSHAFT DIRECTION

CLOCKWISE FROM FLYWHEEL END

COOLING TYPE

FORCE AIR-COOLED

LUBRICATION TYPE

PRESSURE SPLASH

STARTING SYSTEM

RECOIL MANUAL ATART/OPTIONAL ELECTRIC START

PACKING SIZE(MM)

510*470*580

NET WEGHT(KG)

48.5

20FT CONTAINER(PCS)

200
