R series water-cooled diesel engine Ⅰ

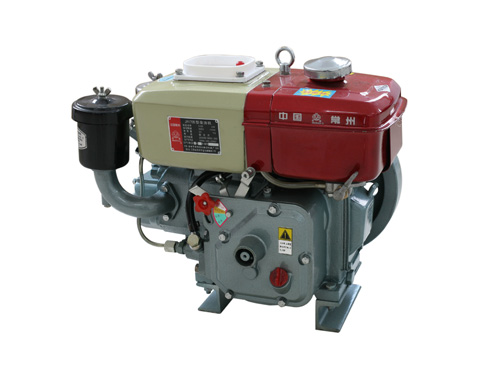

  • R series diesel engine JR170B
  • R series diesel engine JR170B
  •   Contact Us
    • R series diesel engine JR170B
Quick Detail:
TYPESINGLE CYLINDER,HORIZONTAL,4-STROKE,SWIRL CHAMBER
COMBUSTION SYSTEMSWIRL COMBUSTION CHAMBER
BORE*STROKE(MM)70*65

PISTON DISPLACEMENT(L)

0.25
RATED POWER(HP)5HP
RATED SPEED(R/MIN)3000

COMPRESSION RATION

22

FUEL CONSUMPTION(G/KW·H)

395
COOLING METHODWATER-COOLED
LUBRICATION METHOD

PRESSURE SPLASH

STARTING METHODHAND-CRANKING
NET WEGHT(KG)30

PACKING SIZE(MM)

490*310*365
