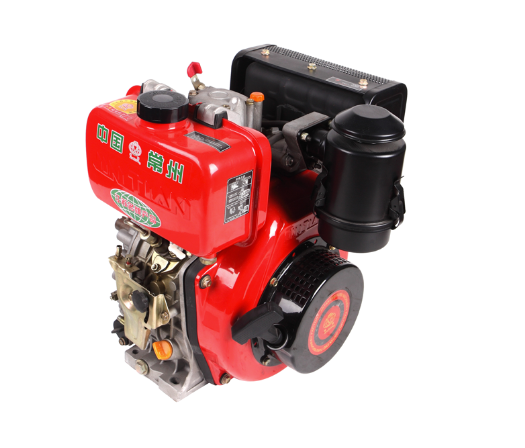

Vertical air-cooled diesel engine
  • Vertical air-cooled diesel engine JT178F(E)7HP
  • Vertical air-cooled diesel engine JT178F(E)7HP
  •   Contact Us
    • Vertical air-cooled diesel engine JT178F(E)7HP
Quick Detail:

TYPE

SINGLE CYLINDER,HORIZONTAL,4-STROKE,AIR COOLED DIESEL ENGINE

BORE*STROKE(MM)

78*62

DISPLACEMENT(CC)

296

COMPRESSION RATIO

2001

ENGINE SPEED(RPM)

3000/3600

RATED OUTPUT(KW)

3.4/4.4

FUEL TANK CAPACITY(L)

3

LUBE CAPACITY(L)

1.1

CRANKSHAFT DIRECTION

CLOCKWISE FROM FLYWHEEL END

COOLING TYPE

FORCE AIR-COOLED

LUBRICATION TYPE

PRESSURE SPLASH

STARTING SYSTEM

RECOIL MANUAL ATART/OPTIONAL ELECTRIC START

PACKING SIZE(MM)

480*460*520

NET WEGHT(KG)

33

20FT CONTAINER(PCS)

240
